Why 3K Plain Weave Is the Choice for Flat, Structural Carbon Parts

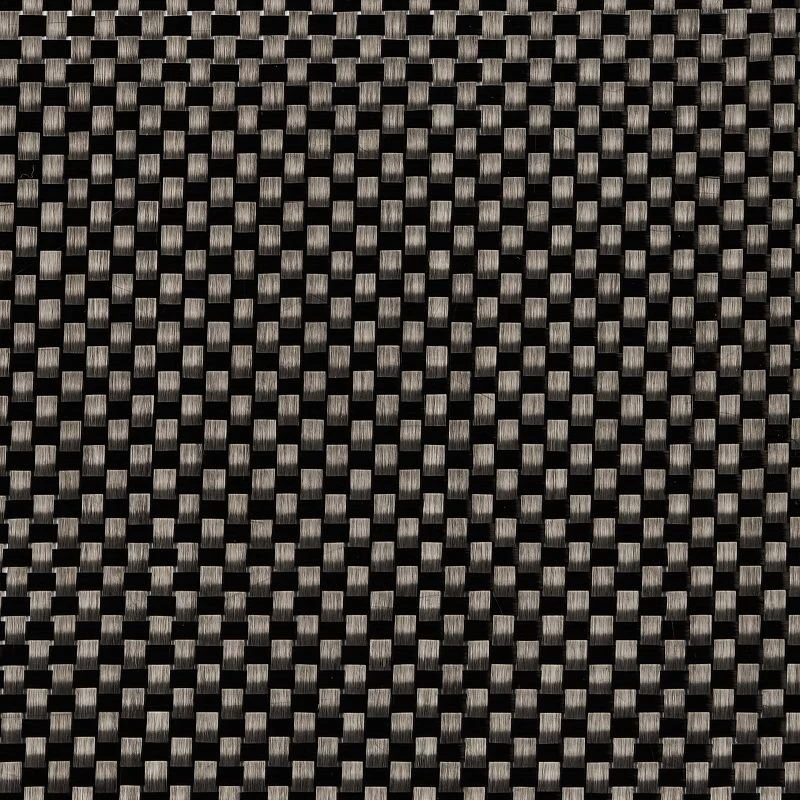

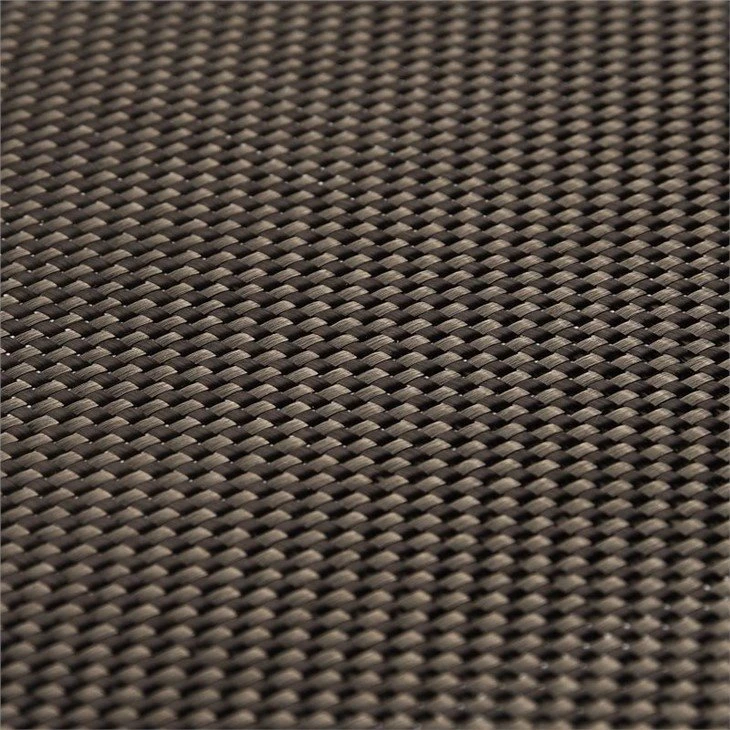

The 1×1 plain weave interlaces each warp and weft tow over-one-under-one, the tightest possible interlacing pattern for woven carbon fiber. That tight interlacing gives plain weave two things twill weave can’t match: a flatter, more symmetrical surface and greater dimensional stability along both the 0° and 90° axes. Where a twill weave drapes better around compound curves, a plain weave holds its shape better on flat panels and resists print-through — the faint weave pattern that can show on a finished laminate surface.

At 200gsm, this fabric is light enough for UAV skins and drone components, yet dense enough to build up structural laminate thickness efficiently in flat or gently curved parts — access panels, ribs, jigs, and tooling surfaces. Because the fabric is more balanced and less prone to shifting during layup, it’s also a favorite for hand-laid parts where fiber alignment matters and for anyone new to composite fabrication who wants a more forgiving, less “slippery” cloth to work with than twill.

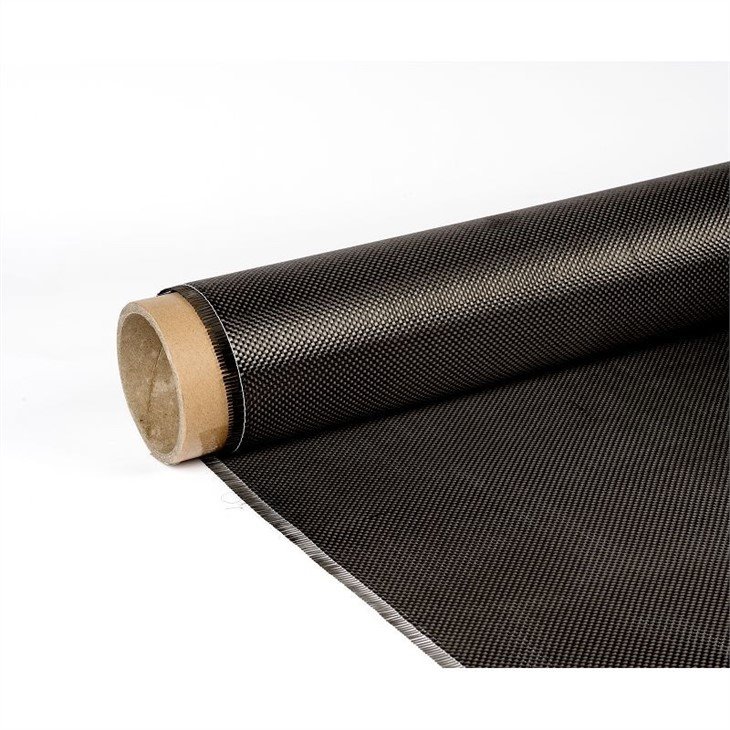

Aeromotive Technologies stocks this fabric locally and verifies every roll for areal weight and weave consistency before it ships. If you’re looking to buy carbon fiber fabric online in Pakistan for a project where flatness, symmetry, and predictable fiber orientation matter more than drape, this is the roll to reach for.

---

Industries and Applications — Where Plain Weave Delivers

🚁 UAV & Drone Structural Panels Flat wing skins, payload bays, and access panels benefit from plain weave’s dimensional stability — parts stay true to tolerance after cure instead of warping toward the bias direction. Pakistan’s growing UAV and agricultural drone sector uses this weave wherever a flat carbon panel needs to stay flat.

✈️ Aerospace & Precision Tooling Jigs, fixtures, and composite lay-up tools need a surface that won’t distort with thermal cycling. Plain weave’s balanced 0°/90° construction resists that distortion better than twill, making it the standard choice for tooling laminates and structural aerospace panels in local fabrication and MRO work.

🏎️ Automotive Body Panels & Flat Trim Splitters, floor panels, and flat trim pieces show a cleaner, more uniform checkerboard weave pattern under clear coat than twill’s diagonal line — a look many builders specifically ask for on flat exterior panels.

🔬 Universities & R&D Labs Plain weave’s predictable, easy-to-model fiber architecture makes it the default choice for composite coursework, test coupons, and research layups where consistent fiber orientation is part of the experiment.

Key Features of 3K Carbon Fiber Fabric — Plain Weave 200gsm

• Plain Weave (1×1): The tightest interlacing pattern available, giving maximum dimensional stability and a flat, symmetrical finish.
• Low Print-Through: A tighter weave shows less surface texture through resin-rich laminates than twill.
• Balanced Strength: Equal fiber count in warp and weft directions gives even mechanical properties along both axes.
• Fire Resistance: Carbon fiber is naturally fire resistant, adding a safety margin in critical applications.
• Fatigue Resistance: Holds up to repeated stress cycles without significant strength loss over time.

Tips for Working with 3K Plain Weave Carbon Fiber

• Resin Pairing: Pair with a laminating epoxy such as RIAERO Epoxy Laminating Resin to get the full strength benefit of the fabric.
• Flat Panels First: Plain weave is at its best on flat or single-curve parts; for tight compound curves, a twill weave will conform more easily.
• Cutting Caution: Trim with sharp shears or a rotary cutter on a hard surface — plain weave frays less than twill, but clean edges still need a steady hand.

---

Specifications

---

Why Buy From Aeromotive Technologies

Sourcing consistent, well-documented composite materials in Pakistan has traditionally meant long overseas lead times and unpredictable customs costs. Aeromotive Technologies solves that by keeping composite materials in local stock, so engineers, fabricators, and research teams can plan a build schedule with confidence.

Every roll of 3K carbon fiber fabric we supply is checked for areal weight and weave consistency before it leaves our warehouse, and our team can advise on resin selection, laminate scheduling, and layup technique for your specific application. Whether you’re a UAV manufacturer building a production run of wing skins, a university lab running composite coursework, or a workshop fabricating flat body panels, you can buy carbon fiber fabric online in Pakistan from Aeromotive Technologies with local stock, technical support, and nationwide delivery.
